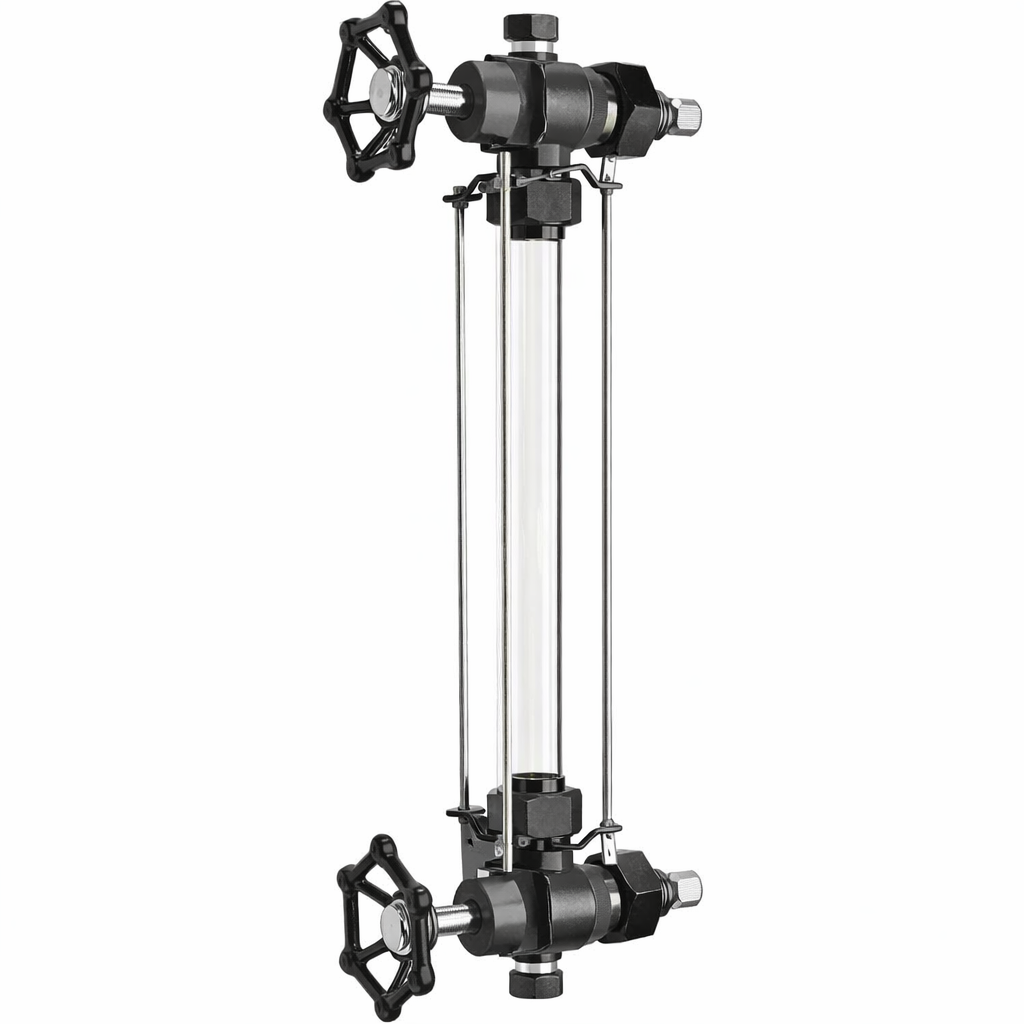

Tubular Level Gauge
GENERAL FEATURES
DOWNLOAD PDF
- Provides simple and reliable visual indication of liquid level
- Uses a transparent tube connected to the vessel through top and bottom fittings
- Operates on the principle of communicating vessels
- Liquid level in the tube matches the level inside the vessel
- Available in glass or clear PVC tube options
- Suitable for a wide range of media and pressure conditions
Material Data
| COMPONENT | MATERIAL |
|---|---|
| Tube | Borosilicate Glass / Clear PVC / Polysulfone |
| Body / Fittings | Brass, SS 304, SS 316, PVC |
| Seals / Packing | PTFE, Neoprene, EPDM, Viton |
| Backing Plate | Aluminium / SS 304 / GRP |
| Process Connection | NPT / BSP Screwed, Compression fittings |
| Check Valve | Brass / SS 316 / PVC |
Design Features
- Simple and cost-effective level indication
- Pressure rating up to 10 Bar
- Temperature range: -20°C to 120°C
- Available in glass tube and clear PVC tube versions
- Top and bottom or side-side connections
- 1/2", 3/4", 1" NPT or BSP process connections
- Graduated scale / ruler backing for easy reading
- Ball check safety valves available on request
