BALL VALVES - BV-TP-FB-Series-Flanged

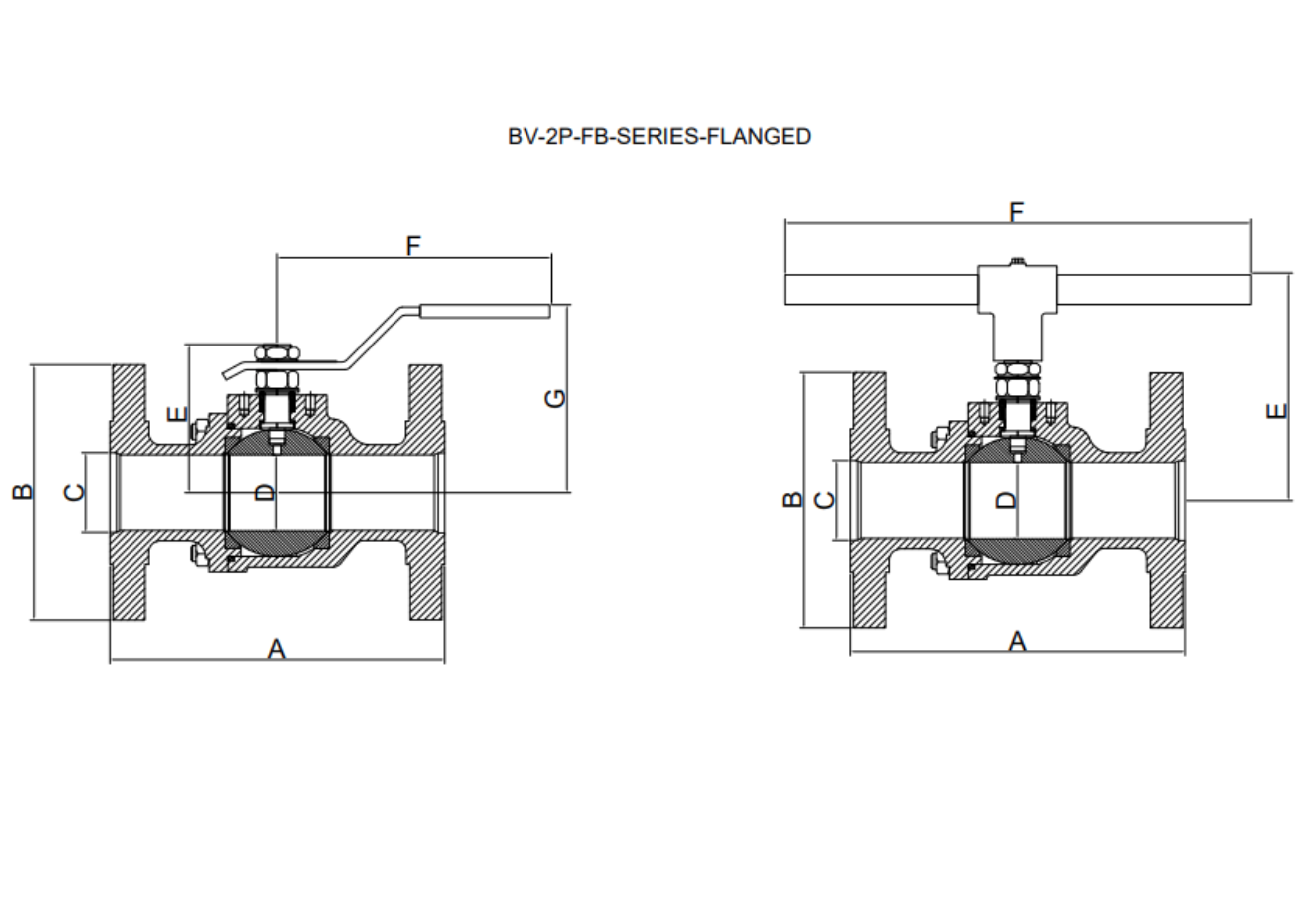

GENERAL FEATURES

DOWNLOAD CAD

• Full Bore Ball – Designed to provide maximum flow with minimal pressure drop.
• Two Piece Body Design – Robust construction with ANSI Class 150 / 300 flanged end connections.
• Pressure Rating – Valves are rated for ANSI Class 150 / 300 service conditions.
• Design Standard – Engineered in accordance with API 6D with face-to-face dimensions as per ASME B16.10.
• ISO Mounting Pad – Actuator mounting pad designed as per ISO 5211:2017 for easy automation.
• Mirror Finished Stainless Steel Ball – Solid stainless steel ball with precision mirror finish ensures smooth operation and tight sealing.
• Low Torque Operation – Precision machining ensures reliable sealing with reduced operating torque.
• Blowout Proof Stem – Stem with shoulder design prevents blowout and ensures safe operation under pressure.
• Atmospheric Sealing – Thrust seals and stem packing provide effective sealing to prevent leakage to atmosphere.
• Standard Lever Operation – Manual lever actuator is supplied as standard.
• Automation Options – Electric and pneumatic actuators can be supplied on request.
• Pressure Testing – All valves are pressure tested in accordance with API 598.

Material Specification

COMPONENT	MATERIAL
Body	CI to IS 210, ASTM A216 WCB, CF8, CF8M, CF3, CF3M
Ball	SS 316, SS 304, SS 304L, SS 316L
Shaft	SS 316, SS 304, SS 304L, SS 316L
Seat	PTFE, Carbon Filled PTFE (on request)
Seal	PTFE, Graphite

Cv Values

SIZE (NB)	Cv	Kv
15	20	17
20	50	45
25	100	85
32	135	115
40	225	220
50	465	395
65	770	655
80	1090	930
100	1970	1675
150	4635	3940
200	8565	7280
