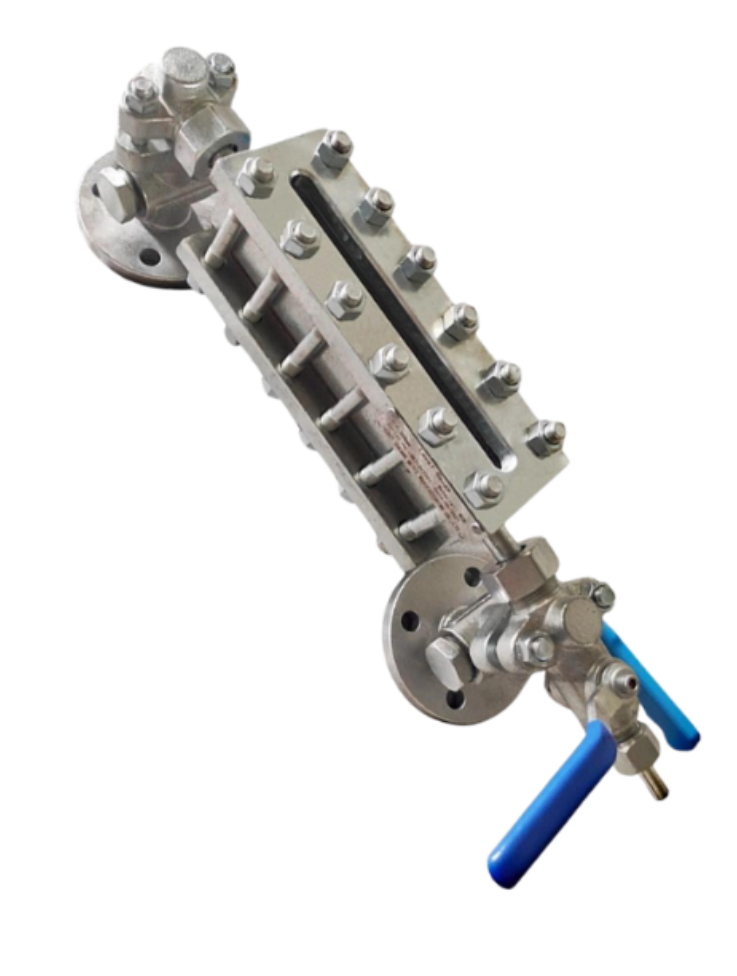

Transperant Level Gauge
GENERAL FEATURES
DOWNLOAD PDF
- Provides direct visual indication of liquid level
- Equipped with two flat transparent glass windows on both sides of the gauge body
- Allows light to pass through for clear visibility of the liquid column
- Suitable for coloured and clear liquids
- Ideal for interface level measurement applications
- Available in multiple configurations including jacketed versions for viscous fluids
Material Data
| COMPONENT | MATERIAL |
|---|---|
| Body | CS, SS 304, SS 316, Duplex SS, Hastelloy C |
| Gauge Glass | Borosilicate / Toughened Flat Glass |
| Gaskets / Seals | PTFE, Graphite, Viton, EPDM |
| Bolts & Studs | SS 304, SS 316, CS Hot-dip Galvanised |
| Process Connection | Flanged (ANSI / DIN) or NPT Screwed |
| Jacket (Optional) | SS 304 / SS 316 / Carbon Steel |
Design Features
- Suitable for clear, coloured and interface level measurement
- Pressure rating up to 64 Bar
- Temperature up to 250°C
- Two flat borosilicate glass windows for clear visibility
- Top and bottom or side process connections
- Drain and vent connections available
- Reflex and transparent interchangeable body
- Illuminated versions for dark environments
