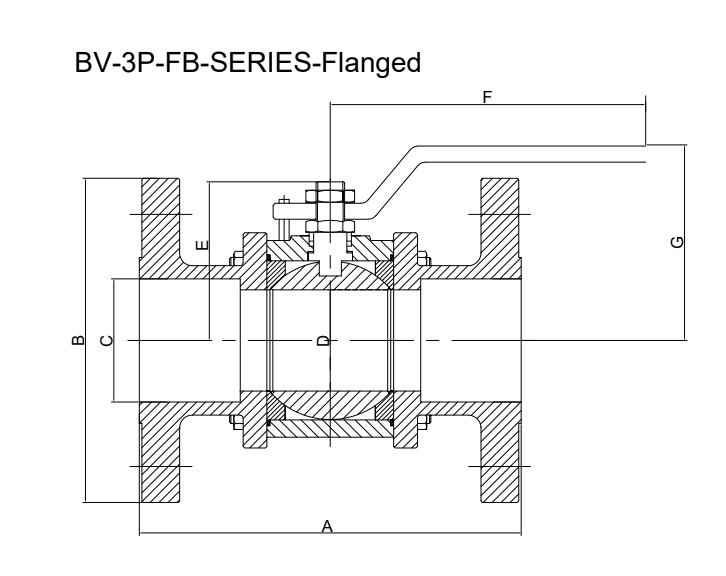

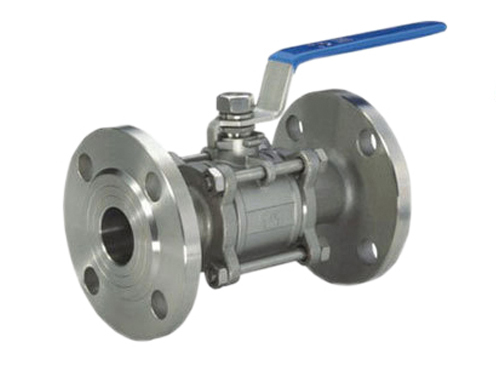

BALL VALVES - BV-3P-FB-Series-Flanged

GENERAL FEATURES

DOWNLOAD CAD

• Full Bore Ball
• Three piece Body design with ANSI 150/300 Class Flanged ends
• Rated to 150/300 class
• Designed to API 6D & Face to Face as per ASME B16.10
• Actuator mounting is designed to ISO 5211:2017
• Solid Stainless Steel Ball with mirror finish is standard
• This ensures leak tight sealing and low torque operation
• Stem with shoulder provides for blowout proof and hence more the pressure better the sealing to atmosphere
• Thrust seals and stem packing seals are used to seal leakage to atmosphere
• Handlever actuator is Standard
• Electric and Pneumatic actuators can be supplied on request
• Pressure testing as per API 598

Material Specification

COMPONENT	MATERIAL
Body	ASTM A216 WCB, CF8, CF8M, Barstock CS, CF3, CF3M
Ball	SS 316, SS 304, SS 304 L, SS 316 L
Shaft	SS 316, SS 304, SS 304 L, SS 316 L
Seat	PTFE, Carbon Filled PTFE (on request)
Seal	PTFE, Graphite

Cv Values

SIZE (NB)	Cv	Kv
15	20	17
20	50	45
25	100	85
32	135	115
40	225	220
50	465	395
65	770	655
80	1090	930
100	1970	1675
150	4635	3940
200	8565	7280
