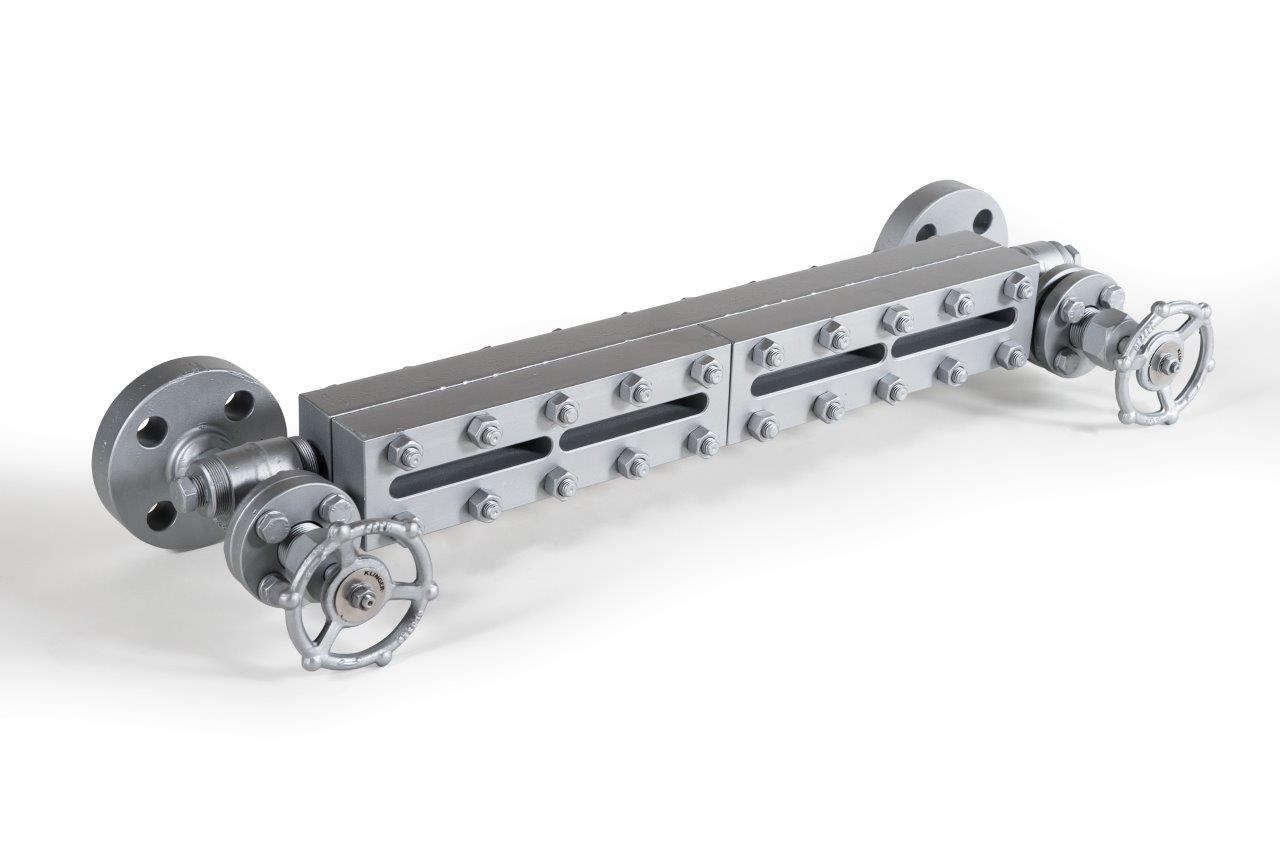

Reflex Level gauge

GENERAL FEATURES

DOWNLOAD CAD
  • Suitable for high pressure and temperature service
  • Pressure rating up to 100 Bar
  • Temperature up to 300°C
  • Available in single and multi-port configurations
  • Toughened borosilicate gauge glass as standard
  • Manual or automatic shut-off safety valves
  • Top and bottom process connections – Flanged / Screwed
  • Protective guard cover supplied as standard
  • Mica shield available for corrosive media
Valve

Material Specification

Component Material
Body CS, SS 304, SS 316, Duplex SS, Alloy 20
Gauge Glass Borosilicate Glass (Type I, III)
Gaskets / Packing PTFE, Graphite, Asbestos-free Fibre
Cover / Guard CS Powder coated / SS 304 / Aluminium
Process Connection SS 304, SS 316, Carbon Steel
Safety Valve SS 316 / Carbon Steel

Components

The Reflex Level Gauge operates on the principle of light refraction and total internal reflection. The gauge glass has prism grooves machined on the inner face. When the prism grooves are in contact with liquid, light passes through and appears dark. When the grooves are in contact with vapour/gas, light is totally reflected and appears bright silver, giving a clear distinction between liquid and vapour levels.
